Post Definitive Guide on How-To Adjust Timing!

Today, I decided to try and check the timing because I am certain it hasn't been checked ever in its 12 year run, until now! Here is a write-up on how to do it. This will make the idleing smoother, engine run smoother, as well as perhaps increase gas mileage for having the optimum timing.

When I checked mine, to my surprise it was at 5 degrees BTDC! No wonder my idle was fluctuating, despite cleaning out the IACV valve, and having new plugs. Not to mention when flooring it, it didn't feel THAT smooth ( I wanted it to feel smoother) and I guess you can say it didn't quite rev easy.

Maximum allowable is 15 degrees BTDC, but you must use 91 or higher octane gas!!!! If you hear pinging or detonation, RETARD THE TIMING to prevent engine damage. According to Nissan Performance Mag in the "Ask Sarah" column of the November 2002 issue, maximum allowable under 87 gas to get slightly more horsepower is 12 degrees.














Be sure to reconnect the TPS and the fan connector once you are finished!

Did I notice a difference? YES! Idle stablized even more, and it runs a lot smoother. I notice myself shifting over 15 mph 1st gear, 25 mph second gear, without thinking as if I do it automatically. Before I would shift at those just because.

Engine doesn't sound strained either. Revs freely as well. I personally believe I have gained some low-end torque. I accelerated faster on a hill on the freeway which I would normally step on the gas and not see a noticeable speed increase. But now I do. Hopefully I can notice some better gas mileage as well (or worse, haha, and not that I didn't have great gas mileage before)

Last edited by oliverr87; Mar 10th, 2006 at 07:03 PM.
oliverr87 is offline
Sponsored Links
Advertisement

post #2 of 83 Old Mar 10th, 2006, 08:38 PM
Nissan Enthusiast

Joined: Aug 2004
Location: Mid-Ohio
Posts: 235
Congrats on an *excelent* post. One of the best descriptives i've seen yet.
I was planning to check mine to over break and this took all the guess work out of it.

Thanks again man!
79kz400 is offline
post #3 of 83 Old Mar 10th, 2006, 11:24 PM
i pwn your mom

psuLemon's Avatar

Joined: Apr 2003
Location: on a treadmill
Posts: 5,439
Send a message via AIM to psuLemon
stickied!!! very good write up.. thanks

Quote:
Originally Posted by hendrix
I can't wait until Hurrican Jamal sweeps up the east coast and steals the wheels and stero out of your car
psuLemon is offline
post #4 of 83 Old Mar 11th, 2006, 03:43 AM
Nissan Enthusiast

JRinke's Avatar

Joined: Jan 2006
Location: SC
Posts: 185
Send a message via MSN to JRinke
Nice post. Did you by any chance spray paint your Valve Cover? Just might want to make sure you use a high temp paint and sealant so it doesnt mess up any internals or electrical.

1992 2-Door B13 GA16DE 1.6L 5-speed XE
JRinke is offline
post #5 of 83 Old Mar 11th, 2006, 04:56 AM Thread Starter
Nissan Fanatic

Joined: Sep 2005
Location: West Covina, CA
Posts: 340
Send a message via AIM to oliverr87 Send a message via MSN to oliverr87 Send a message via Yahoo to oliverr87

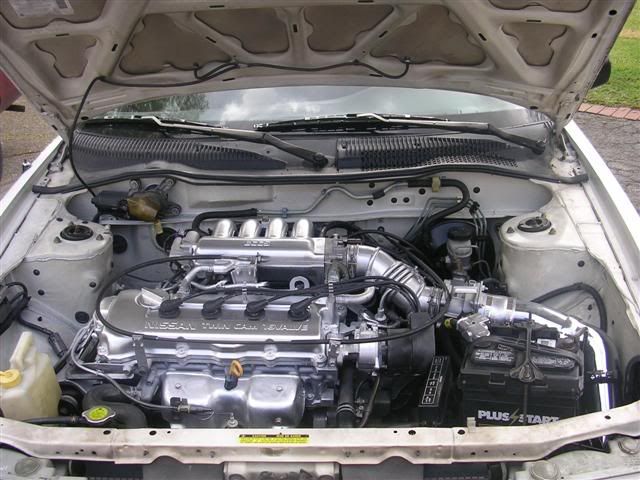

Thanks for the concern JRinke, but my car runs great. I didn't want to show these pictures because I didn't want to reveal what I've done to the car so far!!! =D But while we are at it...here is a preview so far! Before and after pics:

Before:



After:

Last edited by oliverr87; Mar 11th, 2006 at 05:06 AM.
oliverr87 is offline
post #6 of 83 Old Mar 11th, 2006, 09:04 PM
Nissan Enthusiast

Joined: Feb 2006
Location: Nottingham, UK
Posts: 27
Great write up, but its also a good idea to check the idle while adjusting the timing as it can be thrown out by the change, I also find it strange that you guys with US GA16DE engines advance by moving the distributor forwards, I do it by moving it backwards?

It is better to try and fail........
than to never have tried at all!
p10_ga16de is offline
post #7 of 83 Old Mar 11th, 2006, 09:38 PM
Nissan Enthusiast

Joined: Aug 2005
Location: Va, East of Richmond
Posts: 106
Send a message via Yahoo to sybergato
Great post, now if only I could get one of ya'll ta let me borrow a gun. . . .lol.
sybergato is offline
post #8 of 83 Old Mar 11th, 2006, 10:09 PM Thread Starter
Nissan Fanatic

Joined: Sep 2005
Location: West Covina, CA
Posts: 340
Send a message via AIM to oliverr87 Send a message via MSN to oliverr87 Send a message via Yahoo to oliverr87
Thanks guys! Also remember, you cannot set the timing properly IF base idle is messed up! For those people, here is another write-up I did on how to adjust idle. Base idle for manual transmission GA16DE is 650 RPM, 750 RPM for automatic. Make sure idle is correct BEFORE adjusting timing!

1. Warm up and shut off
2. Disconnect fan and TPS
3. Restart and rev 3 times to 3000 rpms
4. Adjust via idle screw, clockwise idle decreases, counterclockwise idle increases
5. Once idle is set, turn off and reconnect TPS and fan




Last edited by oliverr87; Mar 11th, 2006 at 10:59 PM.
oliverr87 is offline
post #9 of 83 Old Mar 11th, 2006, 10:59 PM
Nissan Enthusiast

JRinke's Avatar

Joined: Jan 2006
Location: SC
Posts: 185
Send a message via MSN to JRinke
Also might want to point out the IACV valve for those of you who are having irratic idle and revving problems. Nostrodamus has an excellent write up on how to clean it up, just pointing out though that its in a different position on this engine than his.

1992 2-Door B13 GA16DE 1.6L 5-speed XE
JRinke is offline
post #10 of 83 Old Mar 11th, 2006, 11:02 PM Thread Starter
Nissan Fanatic

Joined: Sep 2005
Location: West Covina, CA
Posts: 340
Send a message via AIM to oliverr87 Send a message via MSN to oliverr87 Send a message via Yahoo to oliverr87
True, this is for B13...B14 is slightly different for adjusting idle!
oliverr87 is offline
post #11 of 83 Old Mar 12th, 2006, 05:08 AM
Nissan Enthusiast

Joined: Aug 2005
Location: Va, East of Richmond
Posts: 106
Send a message via Yahoo to sybergato
GREAT! Post more fix tips for the B13! My engine is 200k over so I'm sure it needs these minor "tunes". Thanks for the tips! Keep em' comin!
sybergato is offline
post #12 of 83 Old Mar 27th, 2006, 06:19 PM
Nissan Enthusiast

Joined: Jan 2006
Location: Lisbon, Portugal
Posts: 47
Thanks oliverr87, this is a good exemple of a picture = 1000 words... real help!
filcchar is offline
post #13 of 83 Old May 5th, 2006, 08:50 PM
Rix
Sorta-Newbie

Joined: Aug 2004
Posts: 19
great pics there
Rix is offline
post #14 of 83 Old May 15th, 2006, 03:10 PM
Nissan Fanatic

Burn 17's Avatar

Joined: Dec 2004
Location: Elk Grove Callifronia
Posts: 467
Send a message via MSN to Burn 17
what is the difference on the b14 for base idle ajustment?

NEW!!1987 300ZX
200 sx auto cross beast--

Intake, Front and Rear Strut bars, Major exhaust leak.98style tail lights, clear corners, and halo angle eyes, Hot Shot headers/Downpipe(still need money for the rest of it)


Mazda B2200 Mini Truck
Burn 17 is offline
post #15 of 83 Old Jun 14th, 2006, 06:26 PM
Nissan Enthusiast

silver93sentra's Avatar

Joined: Nov 2005
Location: White Bluff, TN
Posts: 159
Send a message via MSN to silver93sentra Send a message via Yahoo to silver93sentra
Did you have to change to higher octane fuel after adjusting timing?...OOPS. I didn't read the beginning of the topic, sorry! I feel like a douuche now...great sticky though.

Last edited by silver93sentra; Jun 14th, 2006 at 06:30 PM.
silver93sentra is offline
